Name: WOLF TOOTH RIPSAW PEDALS
SKU: 170965

ENGINEERED TO PERFECTION

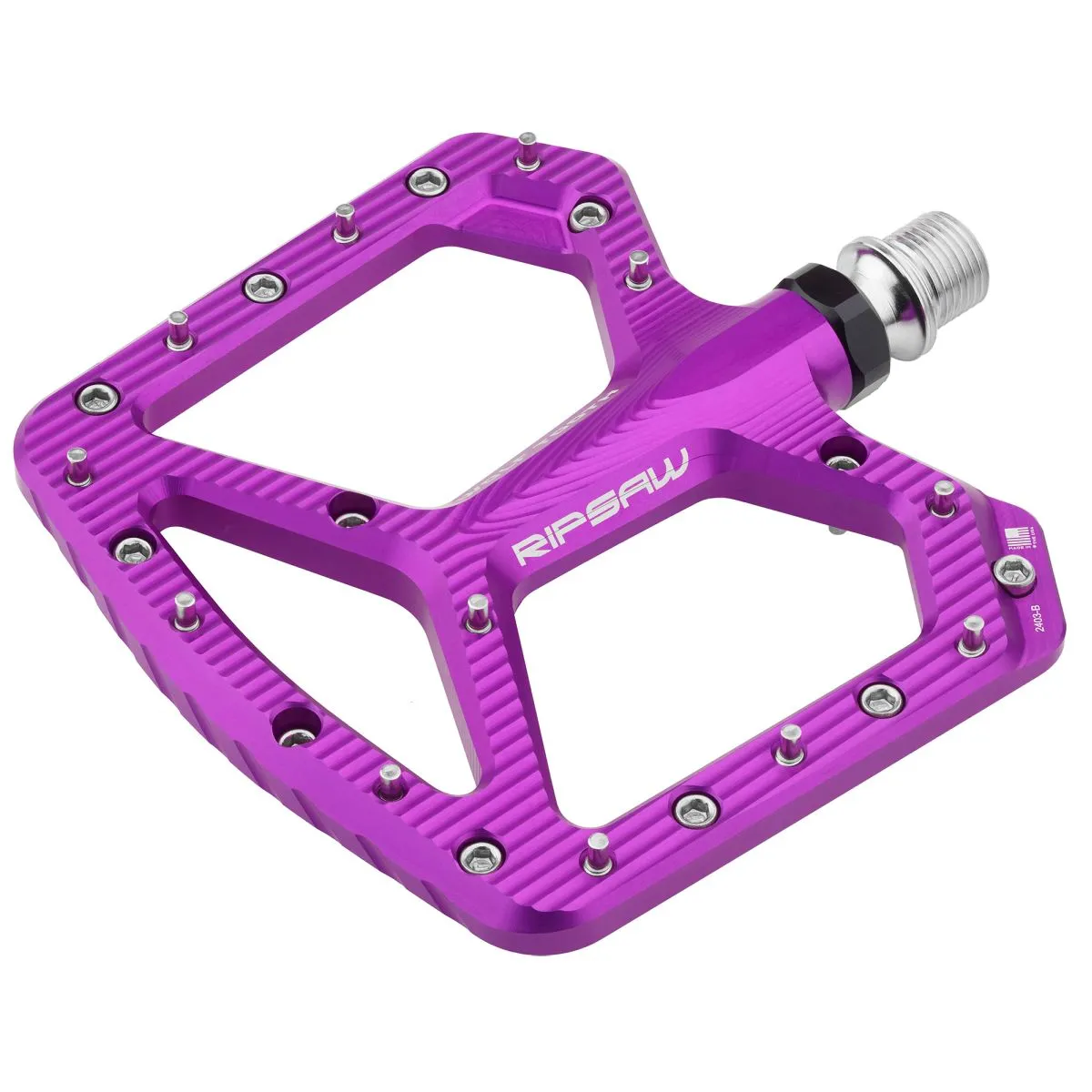

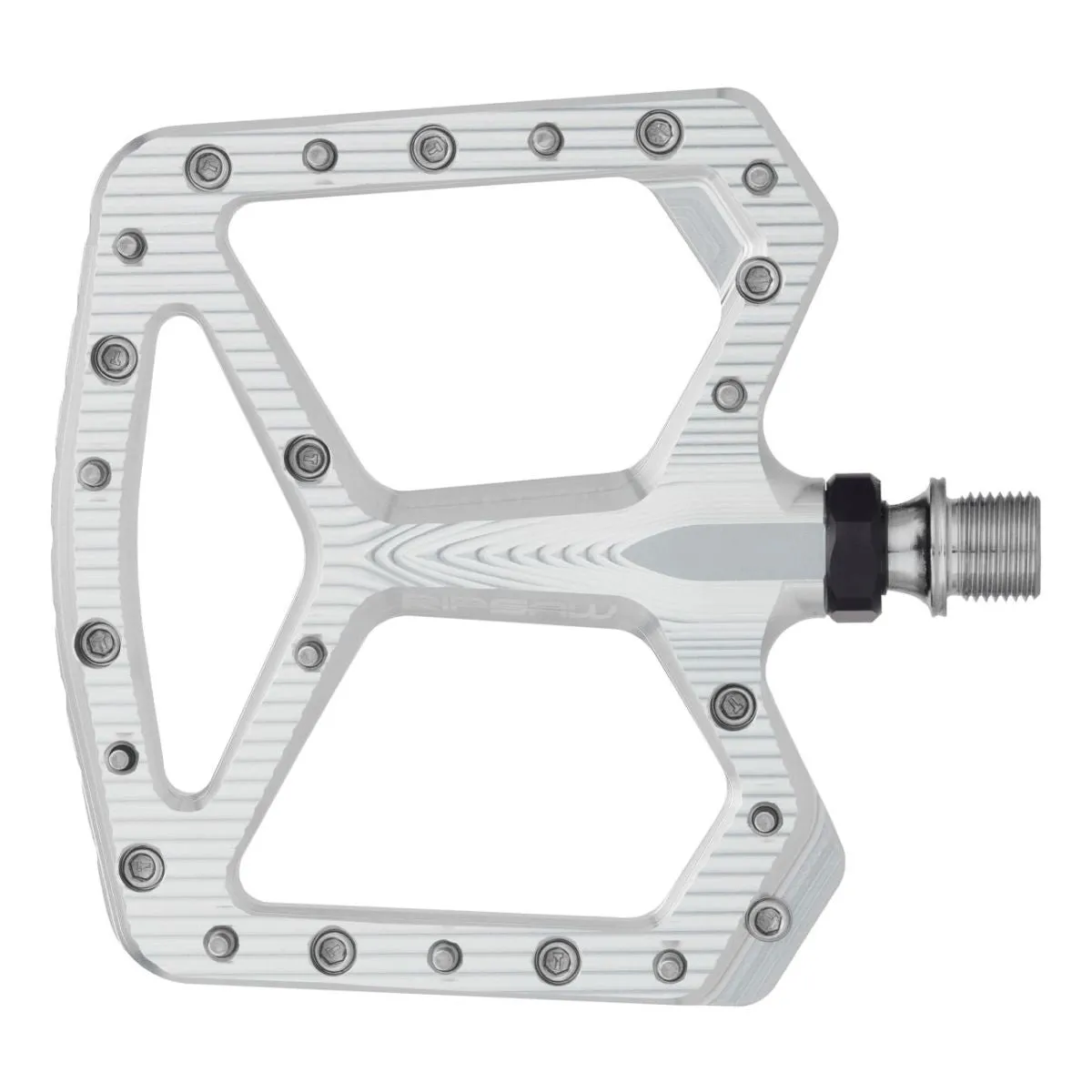

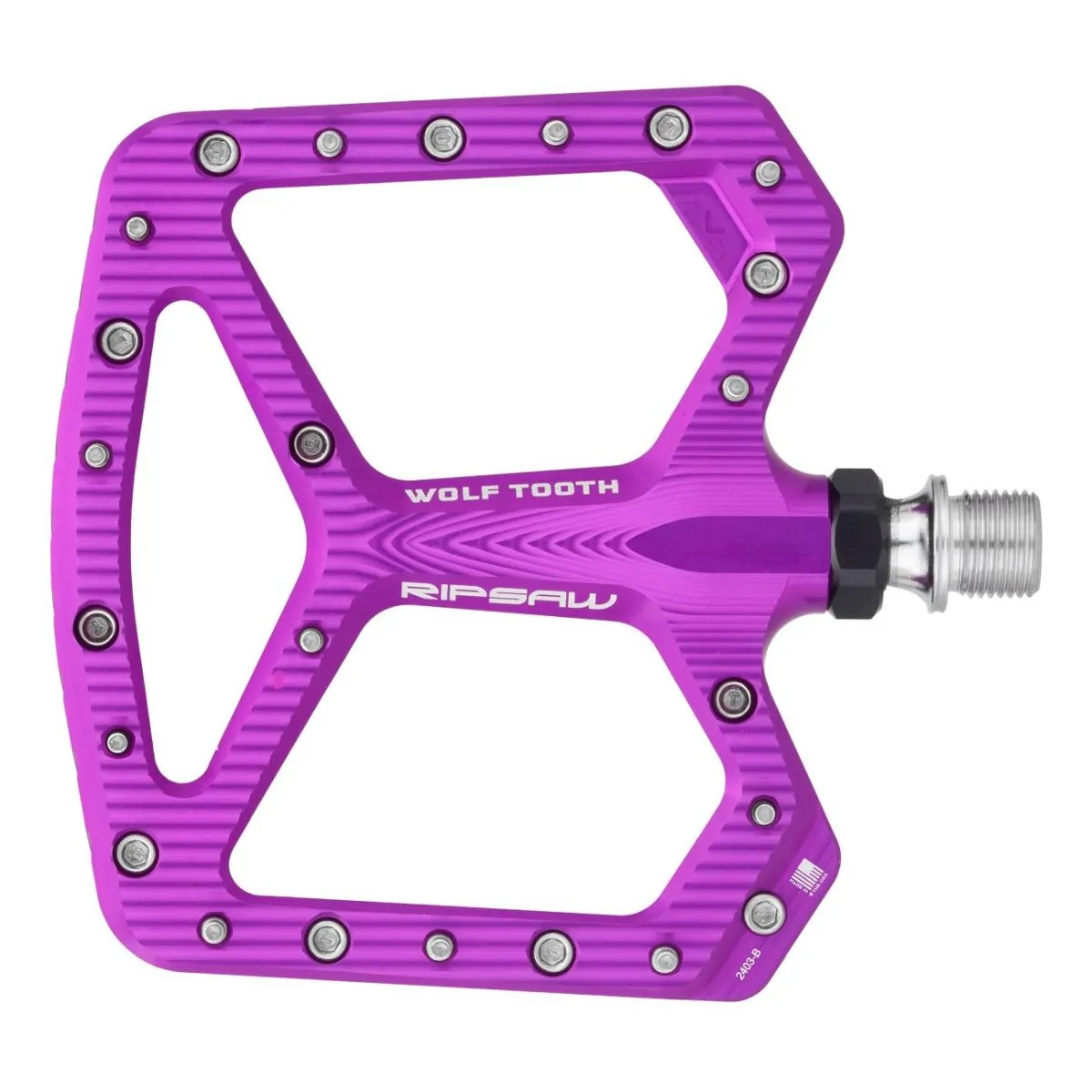

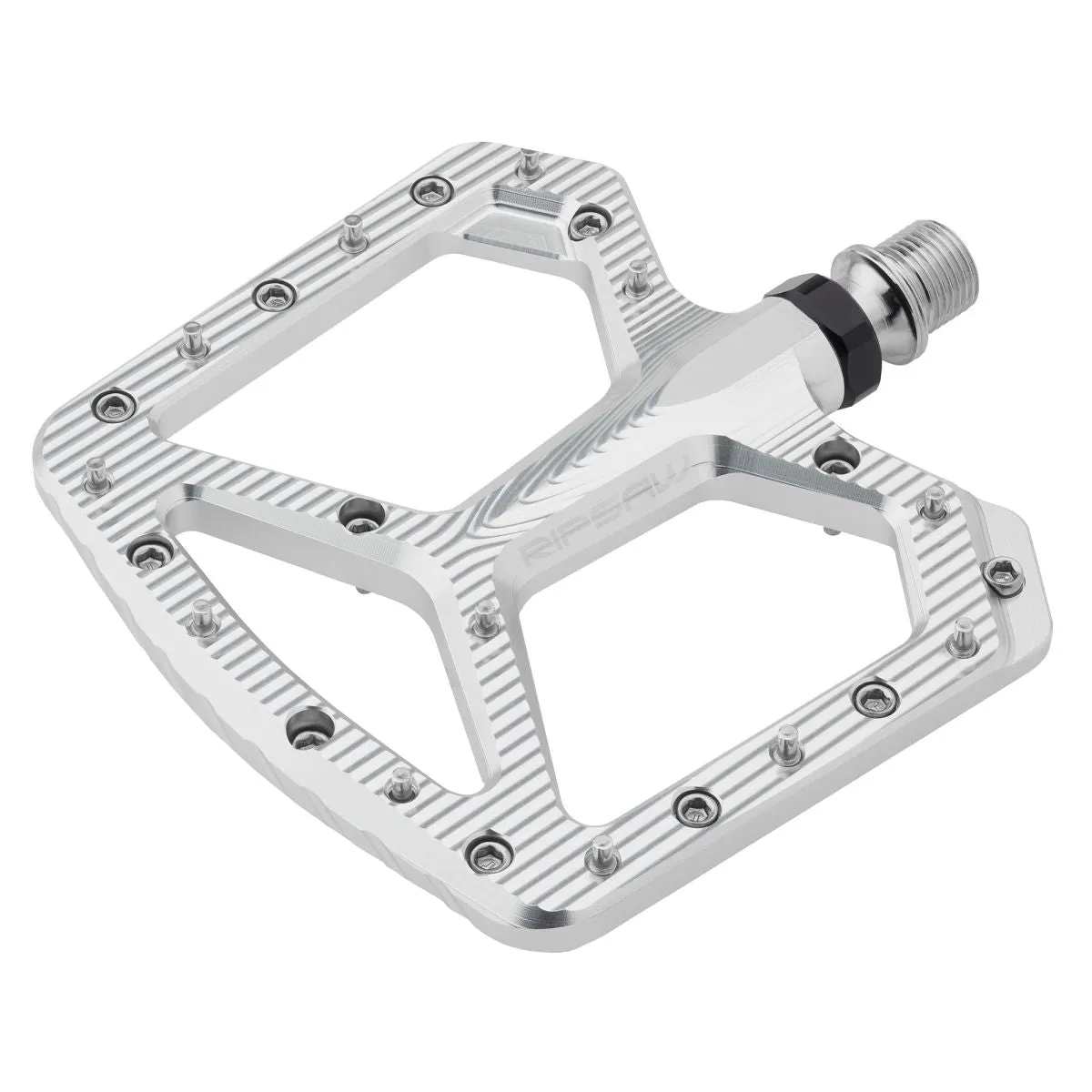

Wolf Tooth Ripsaw Aluminum Pedals feature a slim, lightweight design with a slight convex profile. The large, asymmetric machined aluminum platform provides strong foot support for all-mountain riding, while the thin convex profile is just 7mm thick at the leading edge. These are designed for cyclists who prefer a mid-foot riding position, where the ball of the foot is in front of the pedal spindle and the arch of the foot aligns with the convex arch in the center of the pedal. Inside Ripsaw Aluminum Pedals is a 17-4 stainless steel axle, three sealed cartridge bearings, and one igus bushing with a custom radial seal to protect internal components from trail debris and dirt.

PRODUCT HIGHLIGHTS:

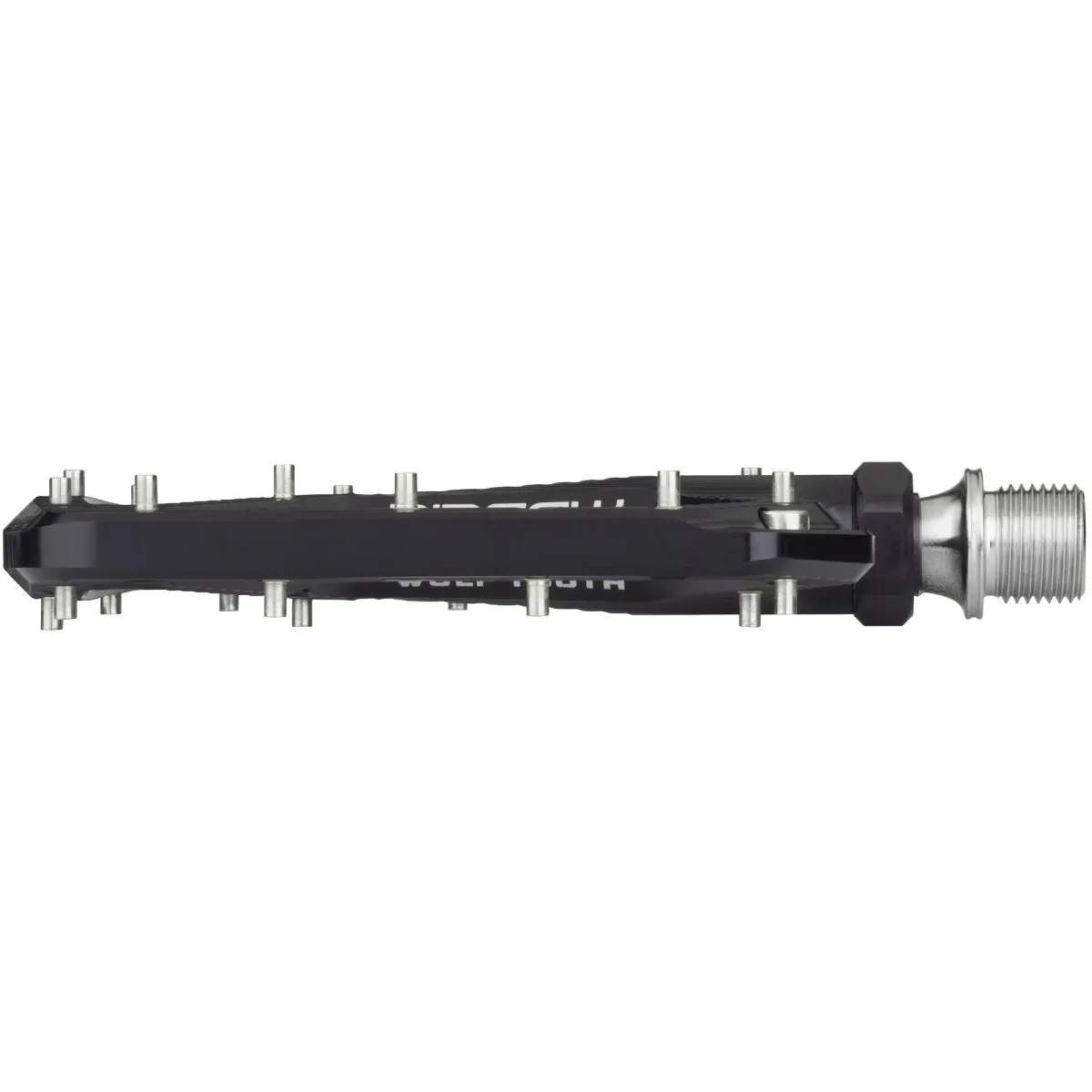

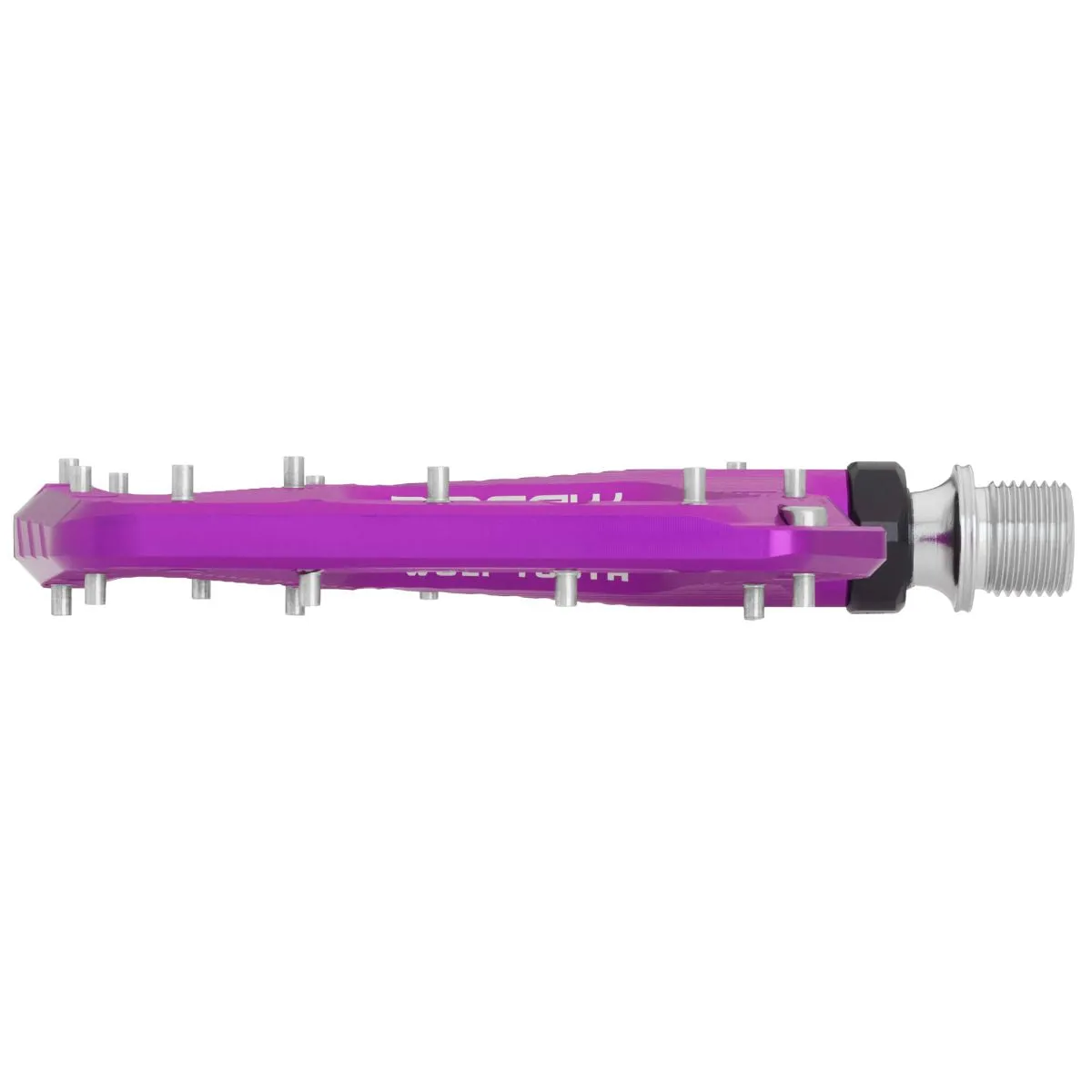

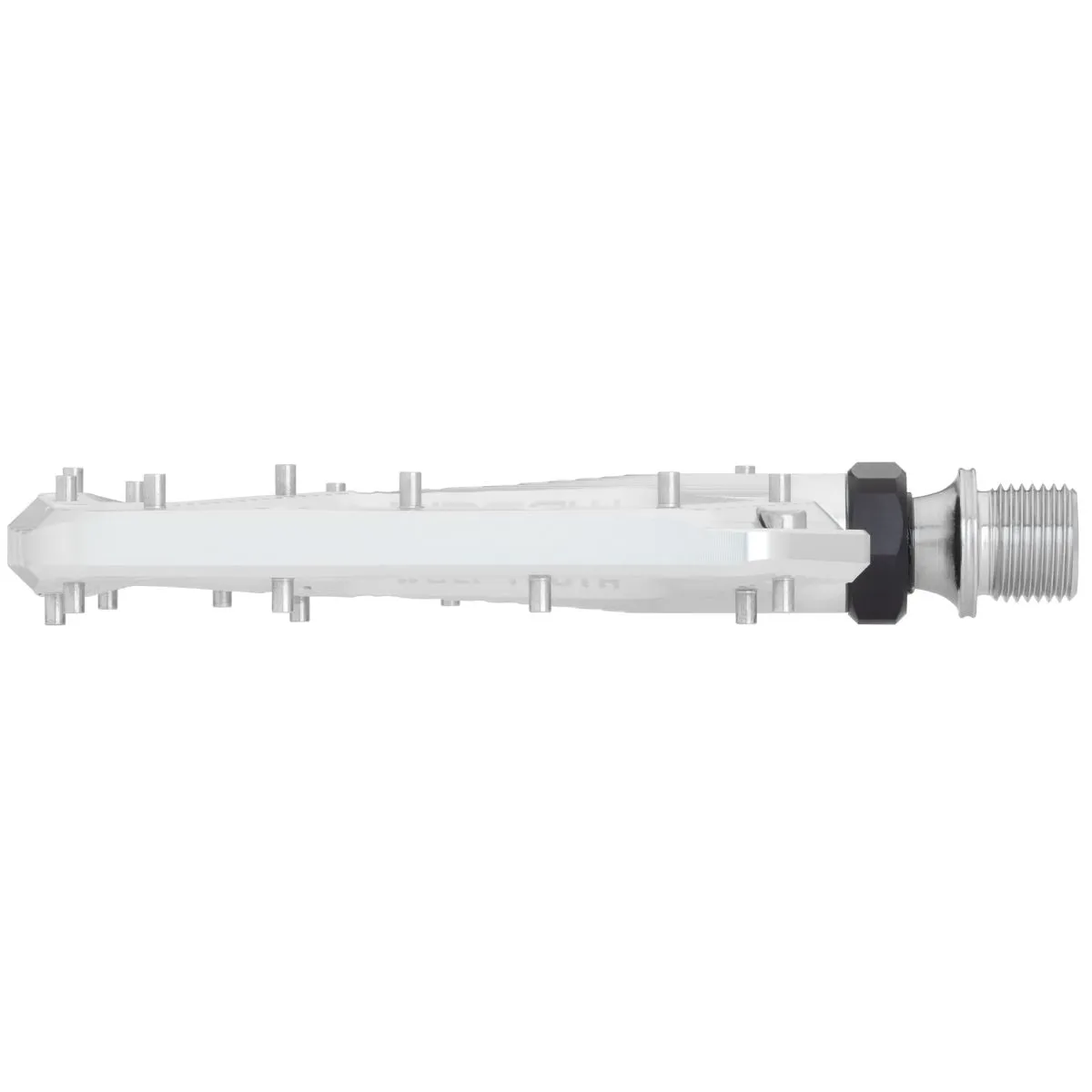

Ripsaw pedals are 12.5mm thick in the center and just 7mm thick in the front and rear edges. This convex profile is supportive and comfortable for all riders, while performing exceptionally well for riders who prefer pedaling with a mid-foot position or for shoes that do not have much structure or support.

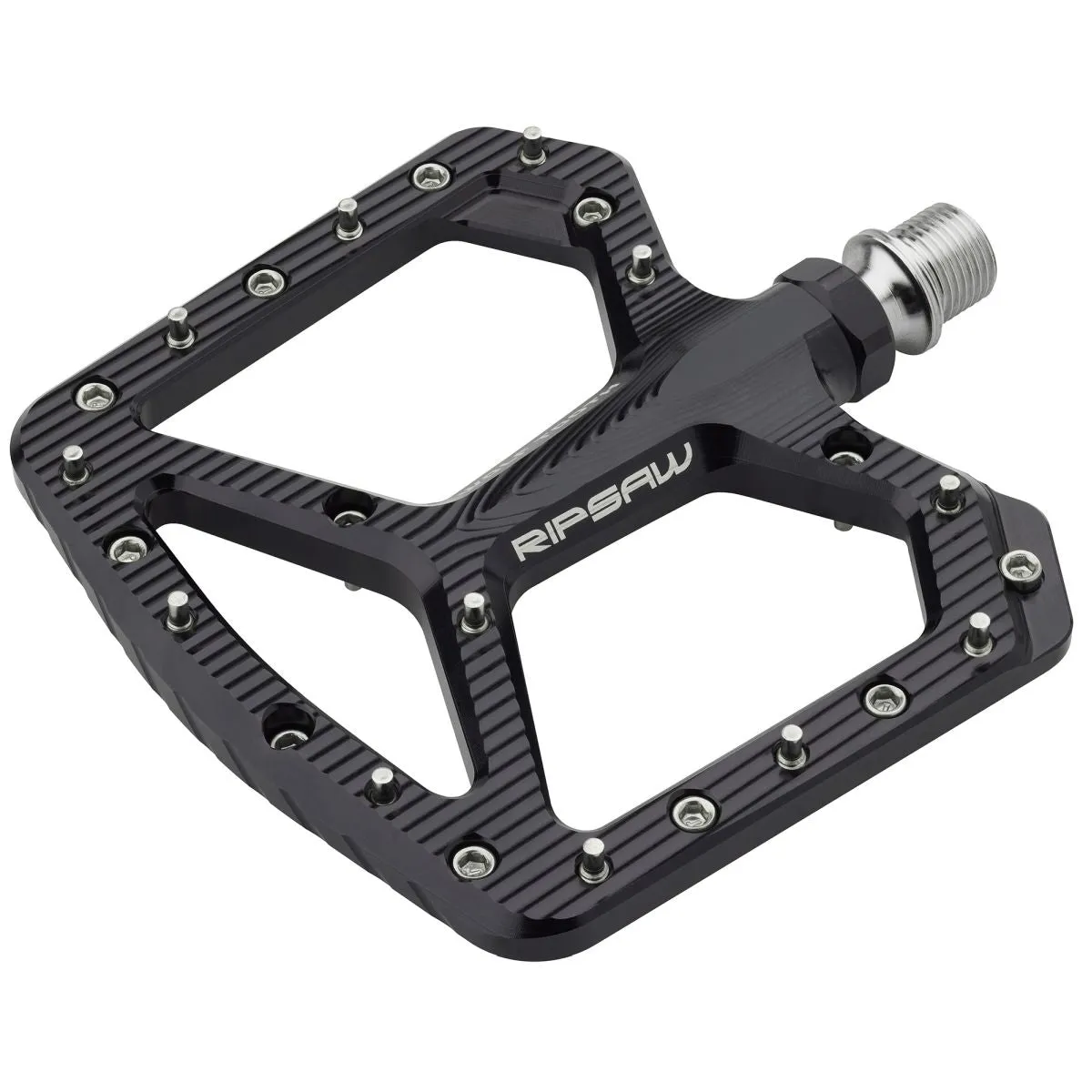

Each side of the pedal has 12 stainless steel rear-loading 4.5mm pins for loads of traction. An additional six 4.5mm pins ship with the pedal. Shorter 3mm pins are available as replacement parts to customize the convexity of the pedal; by installing shorter pins on the edges, the convex profile is emphasized.

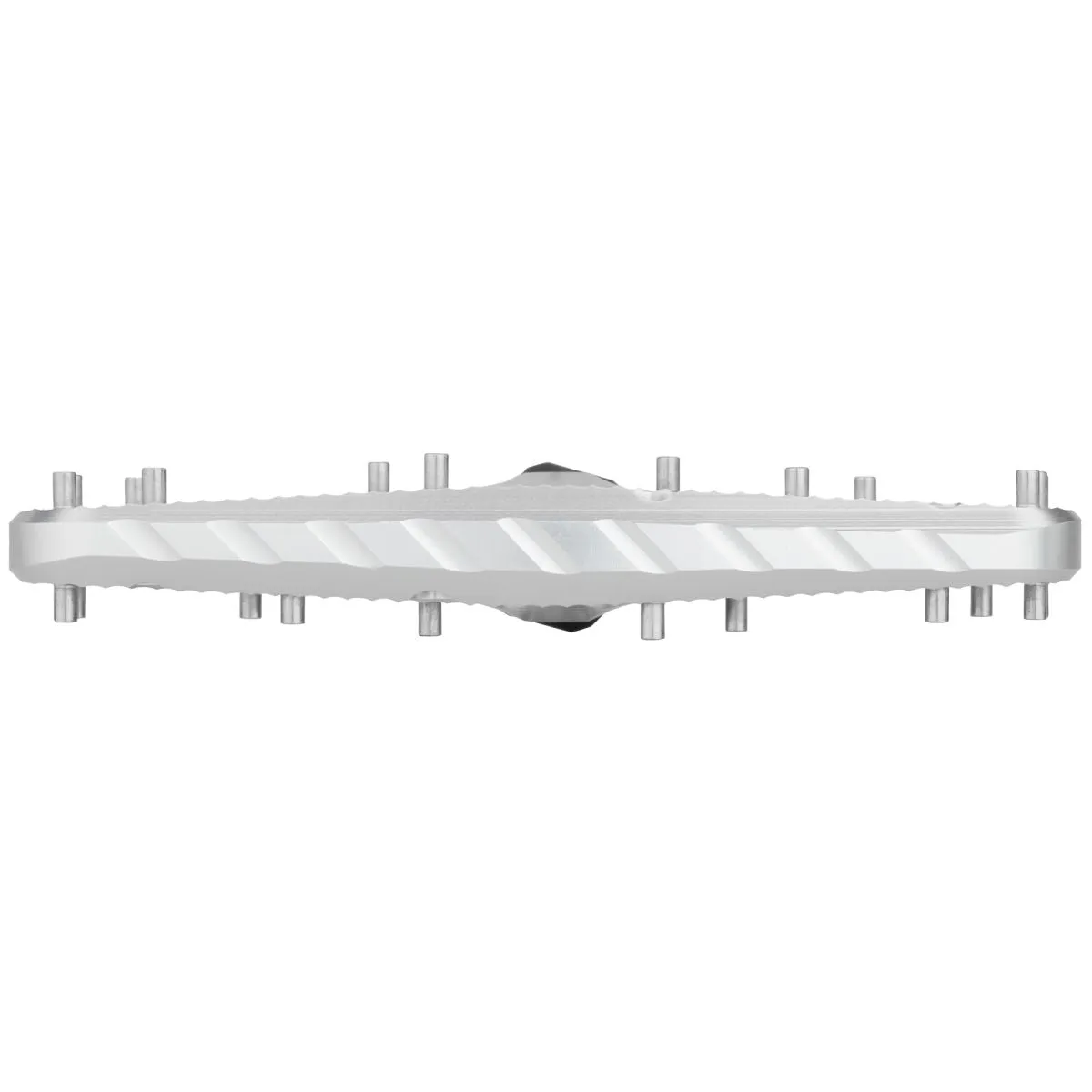

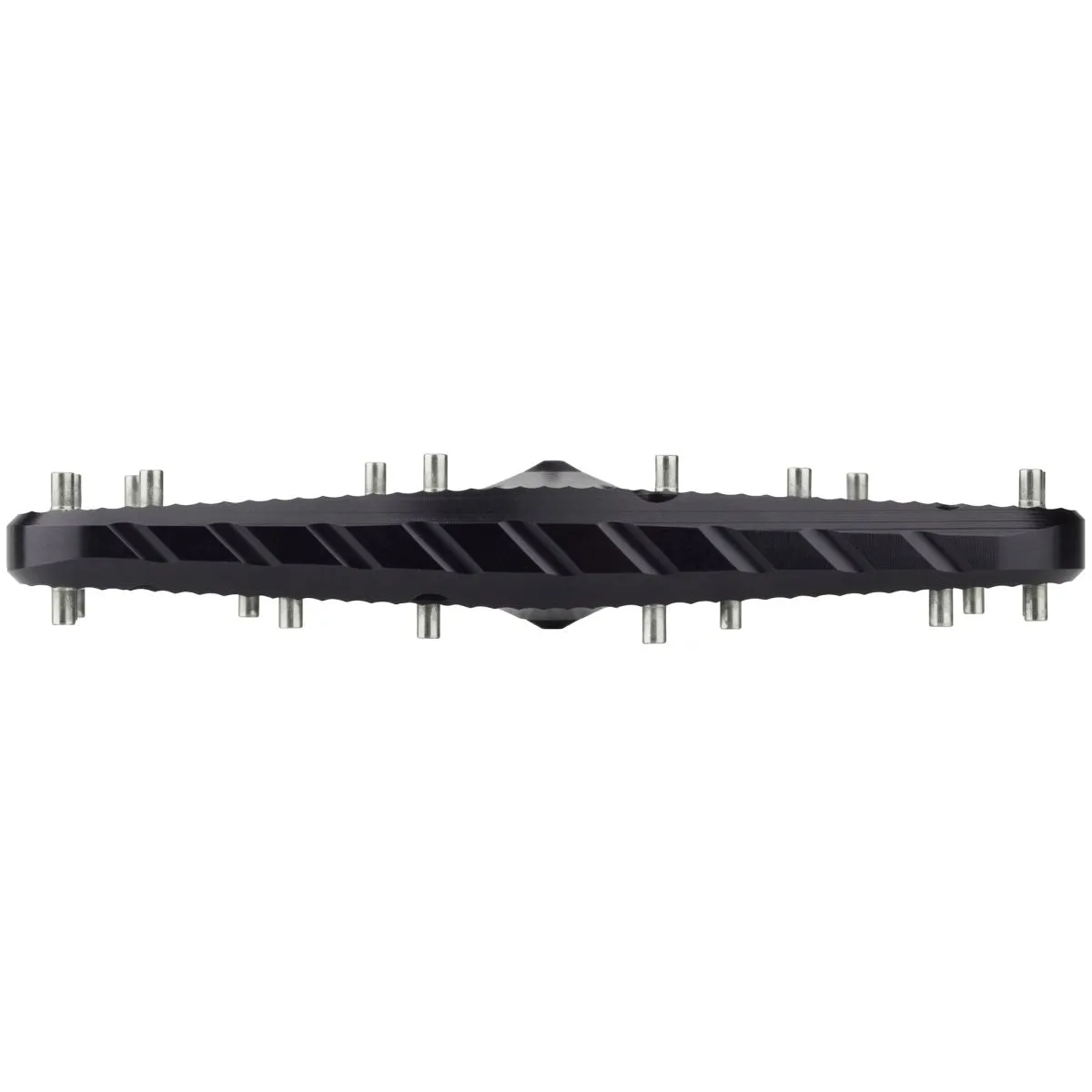

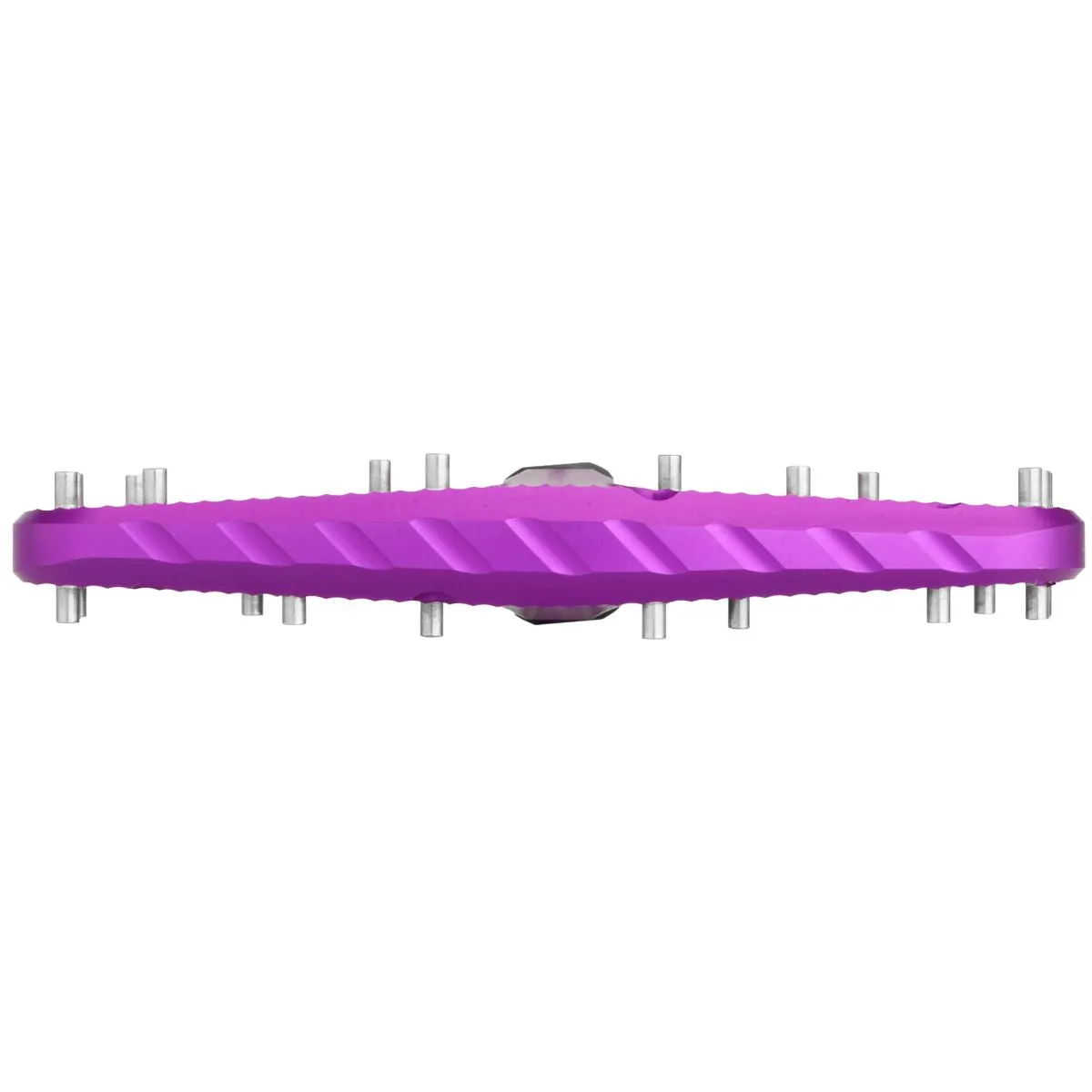

The slight convex profile of the pedal body is tallest at the pedal spindle. The shape then tapers toward each edge from there. This profile aligns perfectly with the arch of your foot and provides a strong platform for power transfer.

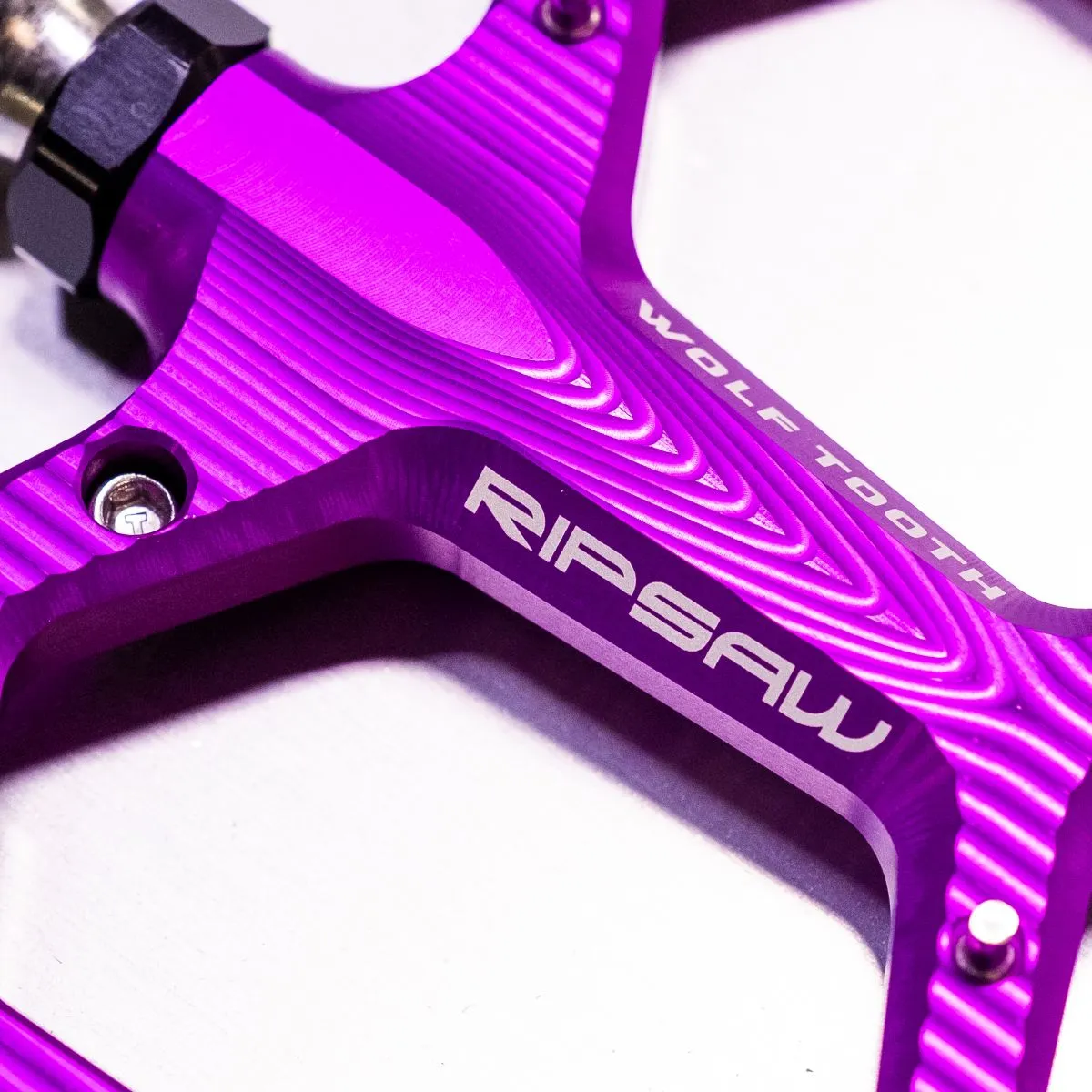

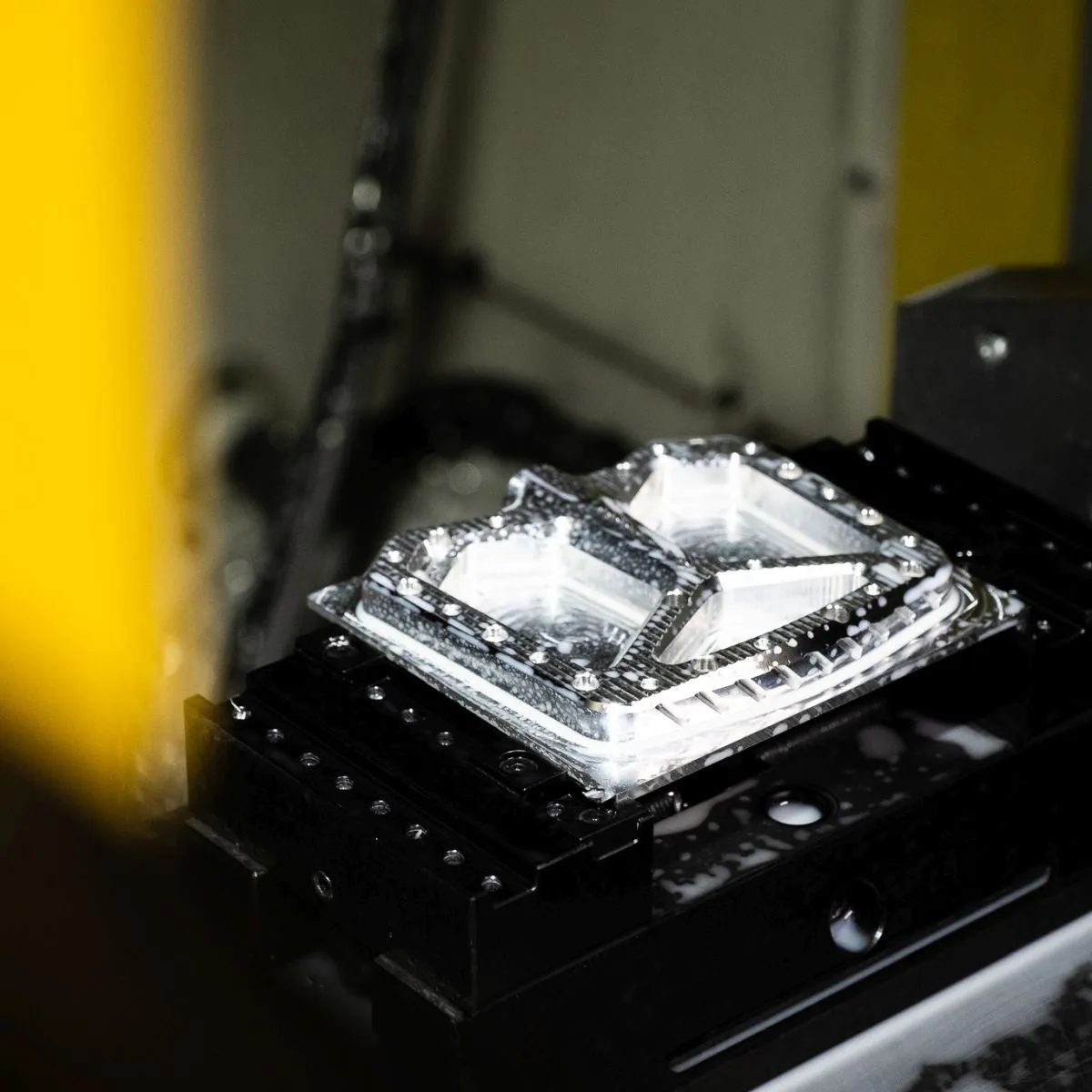

Each Ripsaw Aluminum Pedal body begins as a billet of raw aluminum. After 37 minutes in our CNC mills, the result is a beautifully crafted pedal body that is ready for anodizing and assembly. If you’re a nerd for machining, you’ll appreciate the intricate gradients and machine paths.

Three (3) low-friction, fully sealed cartridge bearings and one (1) igus bushing with a custom radial seal protecting internal components against trail debris, ensuring trouble free performance in all riding conditions.

Machined and hand assembled in the USA.

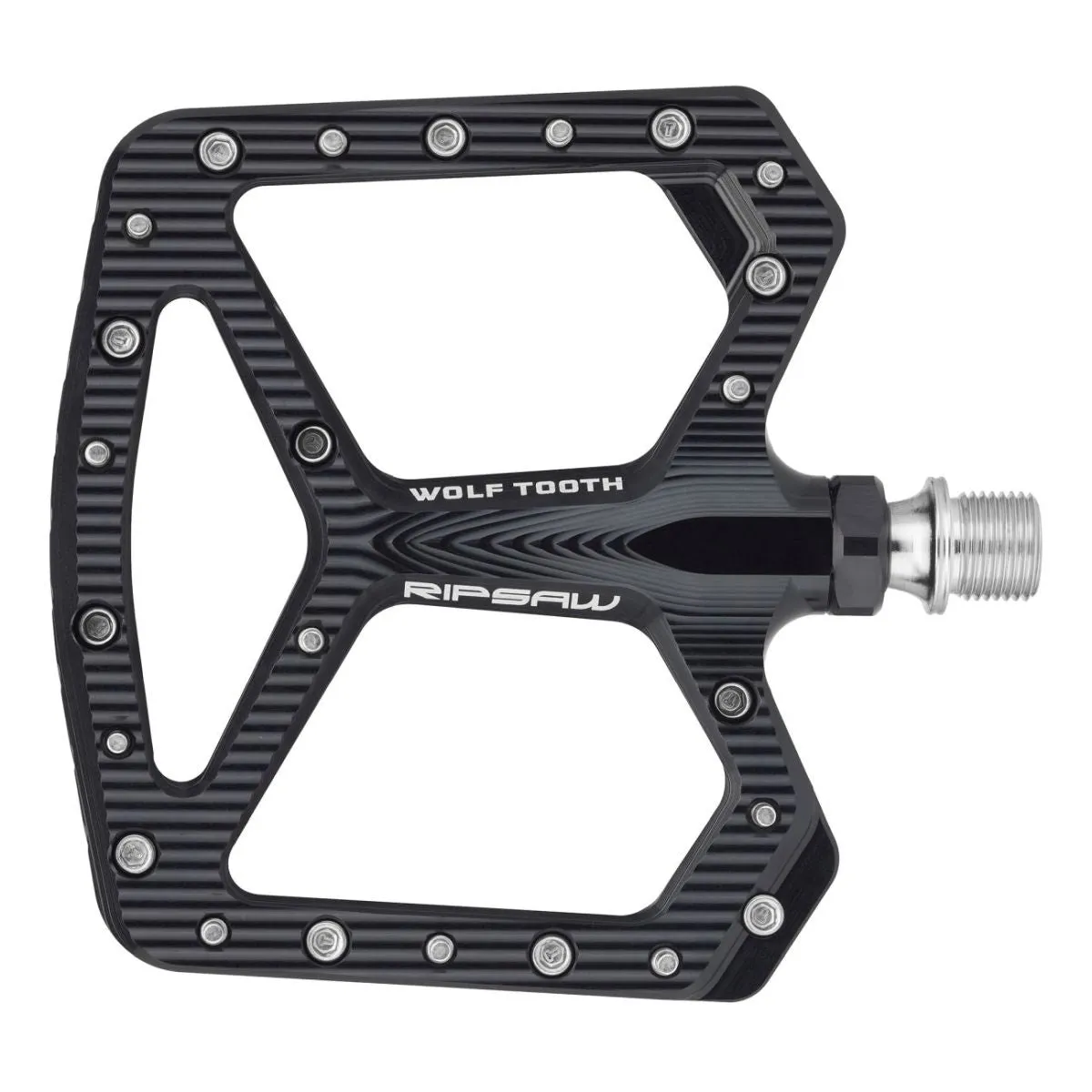

Dimensions: 118mm long x 102mm wide, 4.5mm pin height. Large platform size provides strong foot support. Convex arch aligns with the arch of your foot.
